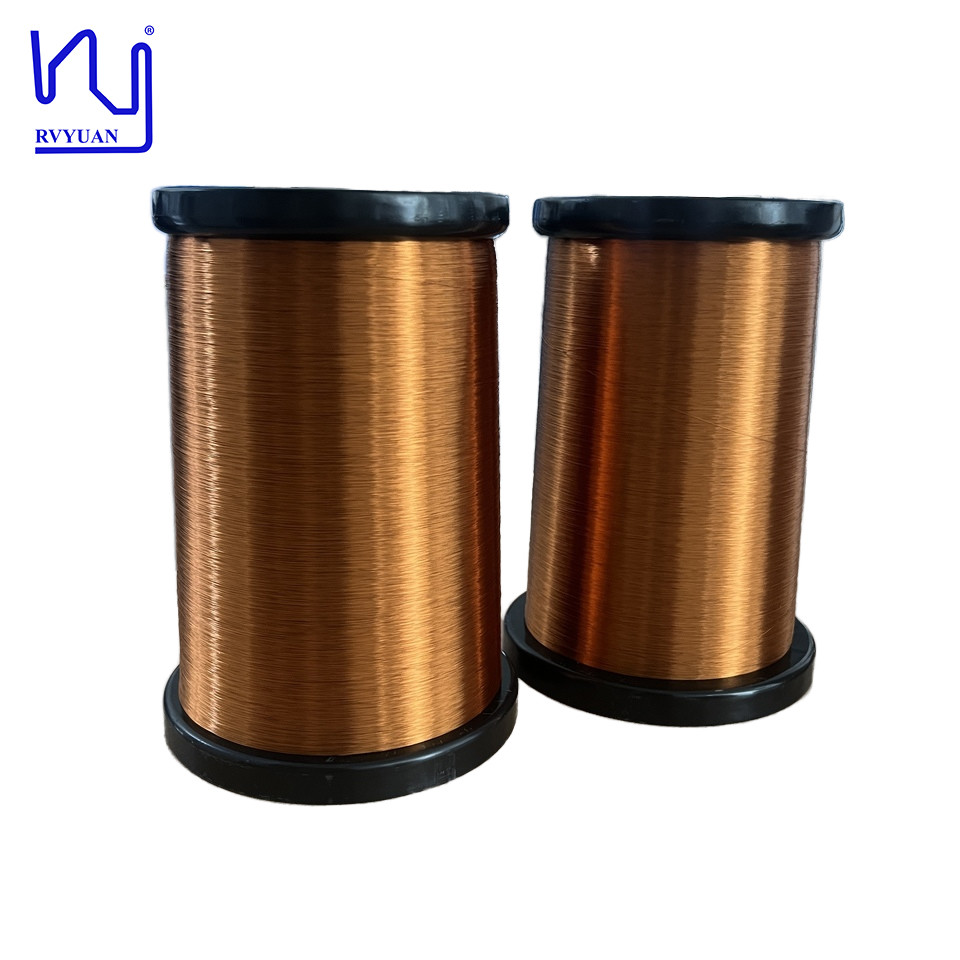

AIW220 0.18mm Enameled Copper Wire Magnet Wire

Βασικές πληροφορίες

Place of Origin:	China
Μάρκα:	Ruiyuan
Πιστοποίηση:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.18mm

Minimum Order Quantity:	5 kg
Τιμή:	negotiable
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Καλύτερη τιμή Επικοινωνήστε

Λεπτομερής ενημέρωση

Product Name:	AIW220 0.18mm Enameled Copper Wire Magnet Wire	Thermal rating:	220
Insulation Material:	AIW	Diameter:	0.18mm
Conductor material:	Copper	Key word:	AIW220 0.18mm Enameled Copper Wire Magnet Wire

Περιγραφή προϊόντων

AIW220 0.18mm Enameled Copper Wire Magnet Wire

Ruiyuan is well known for its expertise in producing enameled round copper wire in a variety of temperature grades, including 155 degrees, 180 degrees, 200 degrees, and 220 degrees. Our commitment to quality ensures that you receive a product that meets your specific needs. We offer custom sizes, with wire diameters ranging from 0.012 mm to 1.8 mm, allowing you to find the wire that best suits your project.

Test Items	Requirements	Test Data			Result
		Min Sample	Ave Sample	Max Sample
Conductor Diameter	0.18mm ±0.003mm	0.180	0.180	0.180	OK
Thickness of Insulation	≥0.008mm	0.019	0.020	0.020	OK
Basecoat dimensions Overall dimensions	Min.0.226	0.210	0.211	0.212	OK
Bonding film thickness	≤ 0.004mm	0.011	0.011	0.012	OK
DC Resistance	≤ 715Ω/km	679	680	681	OK
Elongation	≥15%	29	30	31	OK
Breakdown Voltage	≥2600V	4669			OK
Bonding Strength	Min.29.4 g	50			OK
