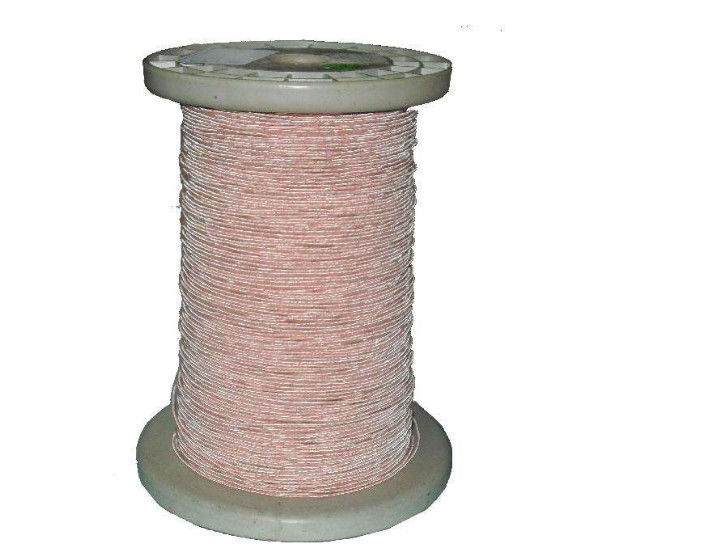

Custom litz wire 2-13000 Strands Copper Stranding Wire for Transformer

Βασικές πληροφορίες
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: RVYUAN
Πιστοποίηση: ISO9001/ISO14001 /UL/SGS
Αριθμό μοντέλου: Ustc
Ποσότητα παραγγελίας min: 10 κιλά
Τιμή: negotiable
Συσκευασία λεπτομέρειες: Καρούλι με χαρτοκιβώτιο
Χρόνος παράδοσης: 2-15 ημέρες εργασίας
Όροι πληρωμής: T/ t/ paypal
Δυνατότητα προσφοράς: Ικανοποιήστε το αίτημά σας
Λεπτομερής ενημέρωση
Διάμετρος: 0,071 χιλιοστά Θερμοκρασία: 155
Πιστοποίηση: IEC/NEMA/JIS/RoHS/ISO Αγωγός: Χαλκός
Σκέλη: 250 Τάση διάσπασης: 1300
Μόνωση: Uew Όνομα προϊόντος: Προσαρμοσμένο σύρμα Litz 2-13000 κλώνοι χαλκού σύρματος χαλκού για μετασχηματιστή
Λέξη κλειδί: Προσαρμοσμένο σύρμα Litz 2-13000 κλώνοι χαλκού σύρματος χαλκού για μετασχηματιστή
Επισημαίνω:

custom litz wire for transformer

,

copper stranding litz wire

,

13000 strands litz wire


Περιγραφή προϊόντων

Custom Litz Wire 2-13000 Strands Copper Stranding Wire for Transformer

Our company offers a variety of custom litz wire solutions to meet your specific needs. We offer single wire sizes ranging from 0.025 mm to 0.5 mm, with strand counts ranging from single to 13,000 strands.

In addition to stranded wire, we also offer various types of stranded wire with cover, including:

  • Nylon served litz wire
  • Taped litz wire
  • Flat nylon severed and taped litz wire

Our products are designed to meet the unique needs of your application, ensuring optimal performance and efficiency. With an emphasis on quality and customization, we work closely with our customers to provide litz wire solutions that perfectly fit their systems.

Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250

Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.
