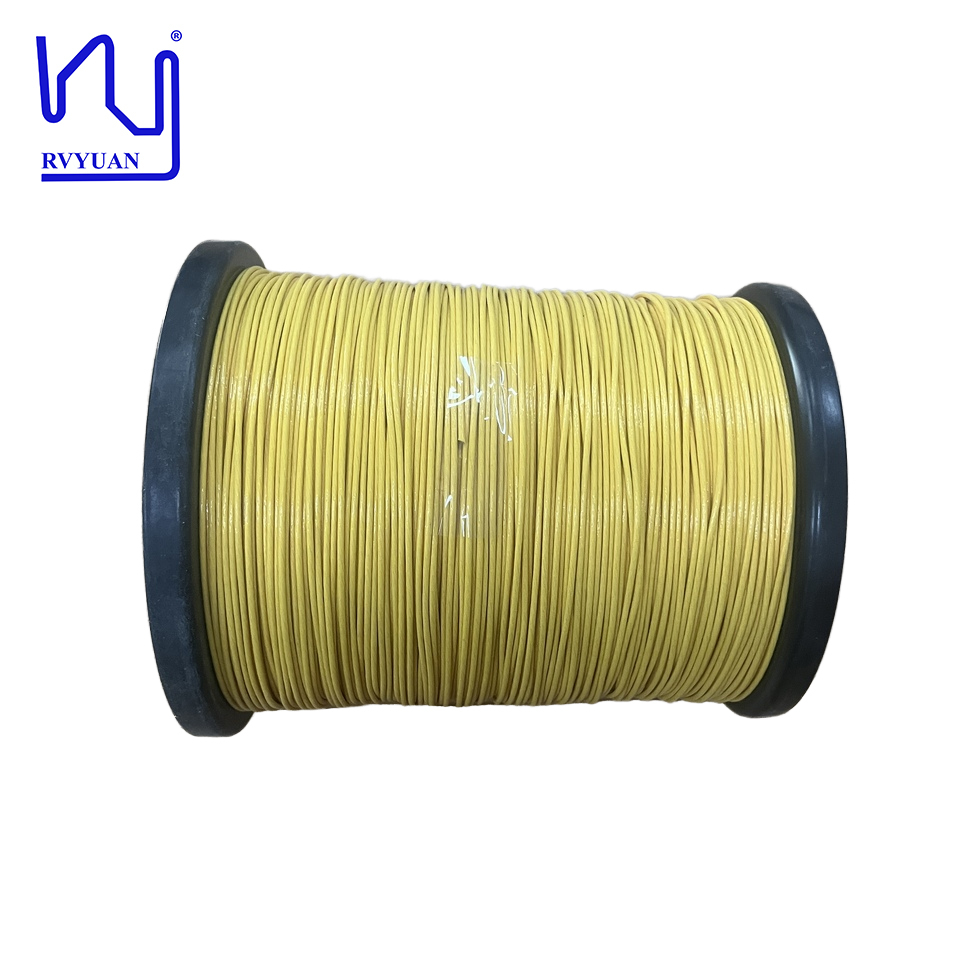

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating

Βασικές πληροφορίες
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: RVYUAN
Πιστοποίηση: UL/ISO9001/ISO14001/RoHS/Reach
Αριθμό μοντέλου: 0,1 mm
Ποσότητα παραγγελίας min: 1000 μέτρα
Τιμή: negotiable
Συσκευασία λεπτομέρειες: Χαρτοκιβώτιο
Χρόνος παράδοσης: 7 ημέρες
Όροι πληρωμής: T/t/paypal
Δυνατότητα προσφοράς: 1ton/month
Λεπτομερής ενημέρωση
Όνομα προϊόντος: Ασφάλεια UL 0.1mmx250 Στρέλες Tiw Litz Wire Etfe Εξαιρετική Επικάλυψη Θερμικό χαρακτηριστικό: 155
Διάμετρος ενός καλωδίου: 0,1 mm Υλικό αγωγού: Χαλκός
Αριθμός κλώνων: 250 Αγωγή: ΕΤΦΕ
Επισημαίνω:

UL safety Litz wire ETFE coating

,

TIW Litz wire 250 strands

,

ETFE extruded triple insulated wire


Περιγραφή προϊόντων

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating
The combination of these properties makes ETFE insulated litz wire particularly suitable for high-frequency transformer winding applications where reliability and performance are critical. Its lightweight and flexible design, coupled with its excellent electrical performance, makes it the first choice for engineers and designers seeking efficient high-frequency wiring solutions.
Product Specifications
Characteristics Technical Requests Sample 1 Sample 2 Sample 3 Conclusion
Appearance Smooth & Clean OK OK OK OK
Diameter of single wire 0.10±0.003mm 0.100 0.100 0.099 OK
Thickness of Enamel ≥ 0.004mm 0.006 0.007 0.008 OK
OD of single wire 0.105-0.109mm 0.106 0.107 0.107 OK
Twist Pitch S28±2 OK OK OK OK
Insulation Thickness Min.0.1mm 0.12 0.12 0.12 OK
OD of Litz Wire Max. 2.2mm 2.16 2.16 2.12 OK
DC Resistance Max.9.81 Ω/km 9.1 9.06 9.15 OK
Elongation ≥ 13 % 23.1 21.9 22.4 OK
Breakdown Voltage ≥ 5K V 8.72 9.12 8.76 OK
Pin Hole 0 hole/5m 0 0 0 OK
UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating 0
Customization & Support
We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
