42AWG Heavy Formvar Magnet Wire For Guitar Pickup 2kg

Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: RVYUAN
Πιστοποίηση: UL/ISO9001/ISO14001/RoHS/Reach
Αριθμό μοντέλου: 42 AWG
Ποσότητα παραγγελίας min: 2 κιλά
Τιμή: negotiable
Συσκευασία λεπτομέρειες: Χαρτοκιβώτιο
Χρόνος παράδοσης: 3 μέρες
Όροι πληρωμής: T/t/paypal
Δυνατότητα προσφοράς: 1ton/month
Λεπτομερής ενημέρωση
Όνομα προϊόντος: 42AWG Heavy Formvar Magnet Wire for Pickup κιθάρας 2kg Μόνωση: Σοβαρό φορμβάρ
Μέγεθος: AWG42 Εφαρμογή: Σπείρες επαναλείψεων κιθάρων
MOQ: 2 κιλά (1 ρολό)
Επισημαίνω:

42AWG heavy formvar magnet wire

,

guitar pickup magnet wire 2kg

,

heavy formvar wire for pickups


Περιγραφή προϊόντων

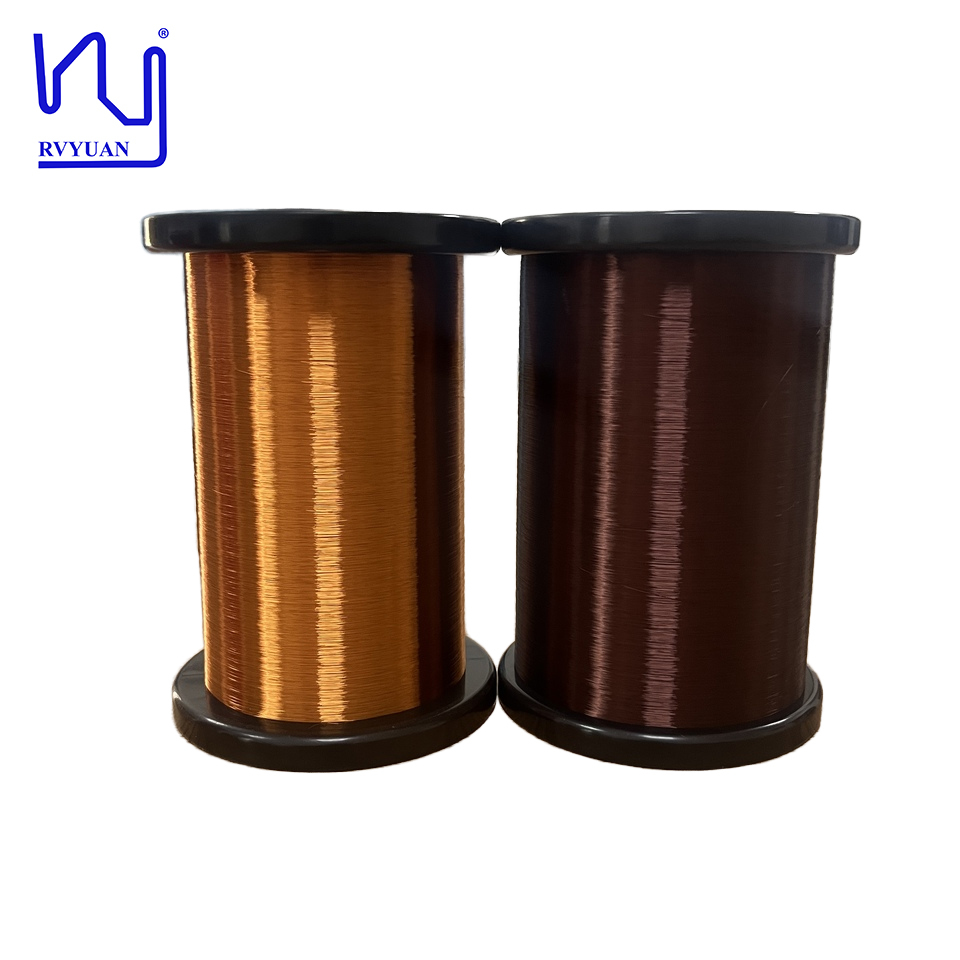

42AWG Heavy Formvar Magnet Wire For Guitar Pickup 2kg
42 AWG 0.063mm Plain / Heavy Formvar Enameled Copper Wire For Guitar Pickup Coils

We supply some of the world's guitar pickup craftsmen with wire custom made to order. Our Pickup Wire started with an Italian customer several years ago, after a year of R&D, and half-year blind and device test in Italy, Canada, Australia. Since launched into markets, Ruiyuan Pickup Wire won a good reputation and has been chosen by over 300 pickups clients from Europe, America, Asia, etc.

Popular insulation options
  • Plain
  • Poly
  • Heavy formvar

Customized colors and size: only 20kg you can choose your exclusive color

Guitar pickup specialists

We mainly manufacture Plain, heavy Formvar insulation and poly insulation wire, for the simple reason that they just sound best to our ears.

  • Plain wire
  • Heavy formvar wire
  • Poly-coated wire

The thickness of the wire is usually measured in AWG, which stands for American Wire Gauge. In guitar pickups, 42 AWG is the one that's most commonly used. But wire-types measuring from 41 to 46 AWG are all being used in the construction of guitar pickups.

The most professional guitar pickup wire manufacturer, we offer formvar/plain enameled copper wire. 42awg, 43awg, 44awg. The wire is mainly used in winding guitar pickups, and is a favorite among many custom pickup shops.

42awg Heavy formvar wire
Characteristics Technical requests Test results
Conductor diameter 0.063mm±0.002 0.063mm
Overall dimension ≤0.074mm 0.071mm
Conductor resistance ≤ 5.900 Ω/m 5.478
Breakdown voltage ≥ 400 V 1768
42AWG Heavy Formvar Magnet Wire For Guitar Pickup 2kg 0
