Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio

Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: RVYUAN
Πιστοποίηση: ISO9001/ISO14001 /UL/SGS
Αριθμό μοντέλου: USTC
Ποσότητα παραγγελίας min: 20 κιλά
Τιμή: Διαπραγματεύσιμος
Συσκευασία λεπτομέρειες: Καρούλι με χαρτοκιβώτιο
Χρόνος παράδοσης: 15 εργάσιμες ημέρες
Όροι πληρωμής: T/T/ Paypal
Δυνατότητα προσφοράς: Ικανοποιήστε την απαίτησή σας
Λεπτομερής ενημέρωση
Διάμετρος: 0.055mm Θερμοκρασία: 155
Πιστοποίηση: IEC/NEMA/JIS/RoHS/ISO Αγωγός: Χαλκός
Σκέλη: 126 Τάση διάσπασης: Ελάχ. 950
Υλικό κάλυψης: Νάιλον Λέξη κλειδί: Σερβίρισμα από φυσικό μετάξι 0,055mm Επιχρυσωμένο σύρμα Litz για ήχο
Επισημαίνω:

natural silk litz wire

,

silver plated audio wire

,

0.055mm litz wire


Περιγραφή προϊόντων

Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio
Product Overview

Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio. The entire litz wire is wrapped in double layers of natural silk. Beyond its aesthetic appeal and flexibility, silk is a superior mechanical damper. It minimizes microphonic noise—the physical vibrations that can be translated into unwanted electrical signals—resulting in a quieter noise floor and allowing for a more lifelike, three-dimensional soundstage. This combination of high-strand Litz geometry, robust enamel insulation, and natural silk damping creates a conductor of unparalleled purity and sonic accuracy.

Technical Specifications
Conductor diameter (mm) 0.0550±0.0030 (silver layer: 0.0002)
Single sides insulated layer thickness 0.0050±0.0010
Electrical resistance of single wire (Ω/m) 6.243~7.738
Breakdown Voltage (V) ≥950
Twist Distance (mm) P1=8±2 P2=21±3
Stranding mode 18X7
Electrical resistance (Ω/m) 0.0505~0.0627
Thermal class F(155)
Soldering time 2S/390±5℃
Twist Direction Z
Faults/5 m (Saline pinhole) 0
Product Image

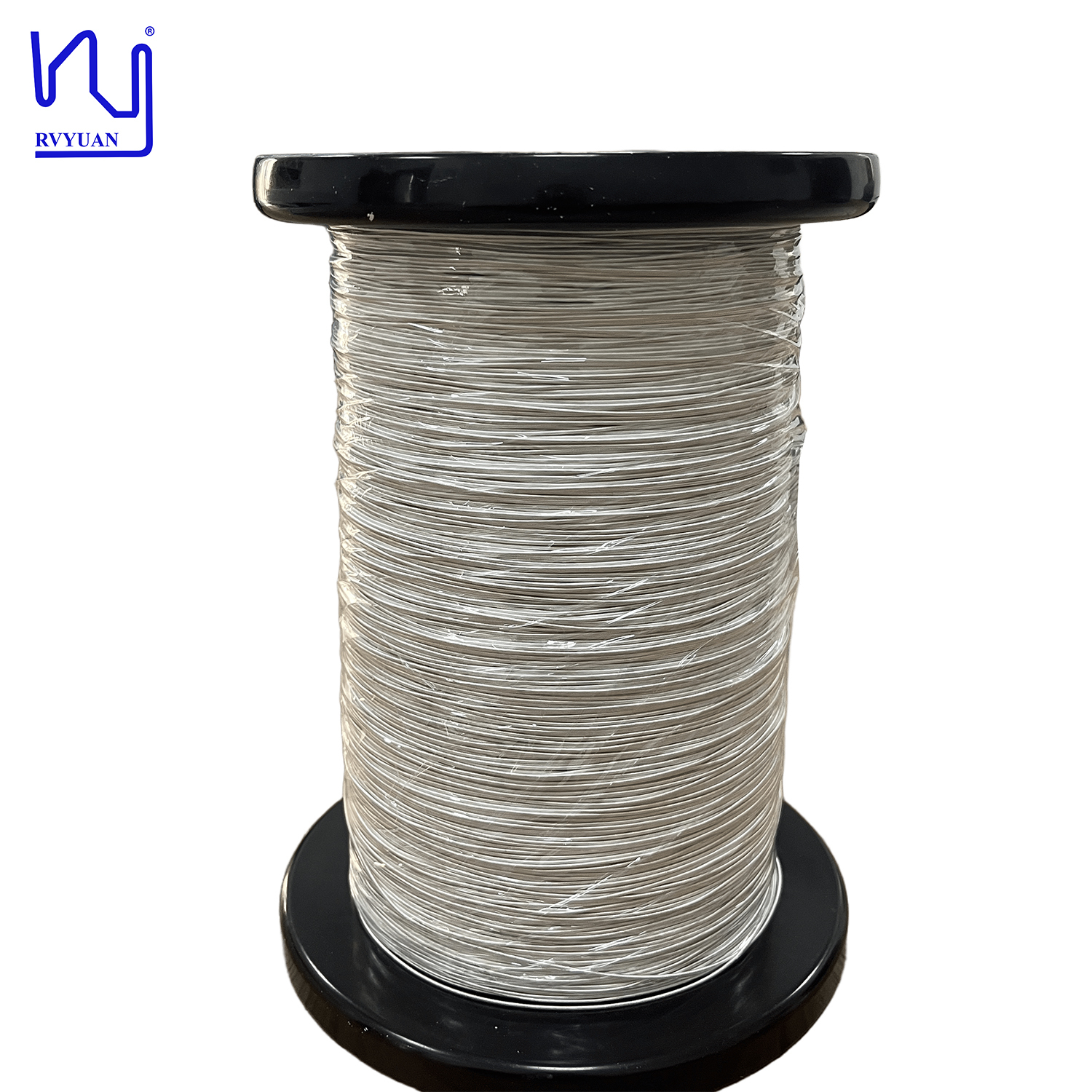

Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio 0
